FineLine
Where less is more, and the minimal is magnified.
MINIMALISTIC. CONTEMPORARY.
FineLine interior doors by Lynden Door bring a fresh, stylish appearance to any space. FineLine’s grooved profile lines are positioned to bring linear dimension as a modernizing accent or simply to bring accessibility and structure to contemporary spaces.
A MODERNIZING SOLUTION TO CONTEMPORARY SPACES.
-
Grooved primed flush.
-

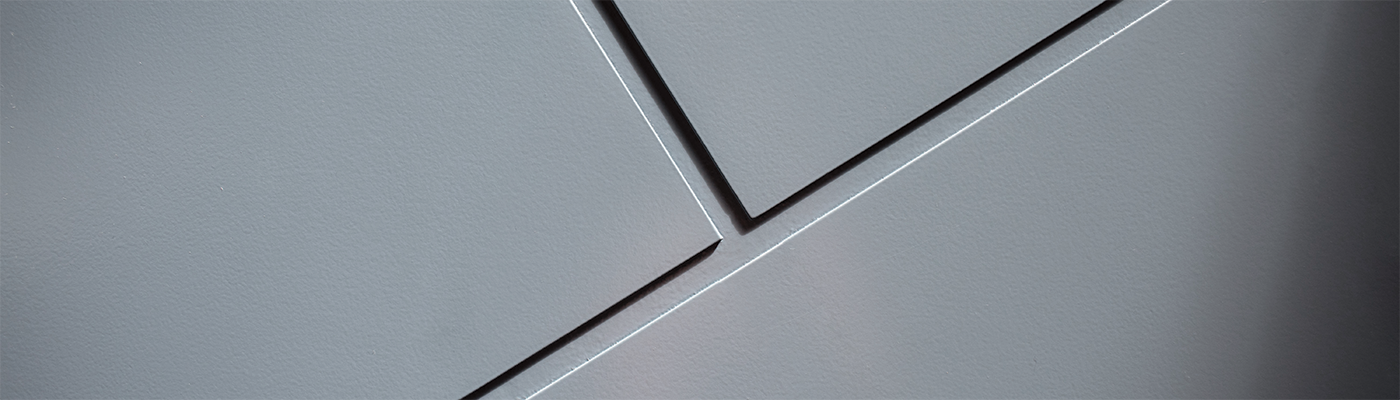

Route lines are .22 inches wide, .035 inches (+/- .005) deep with a 30 degree bevel providing an easily paintable surface within the groove lines.
-

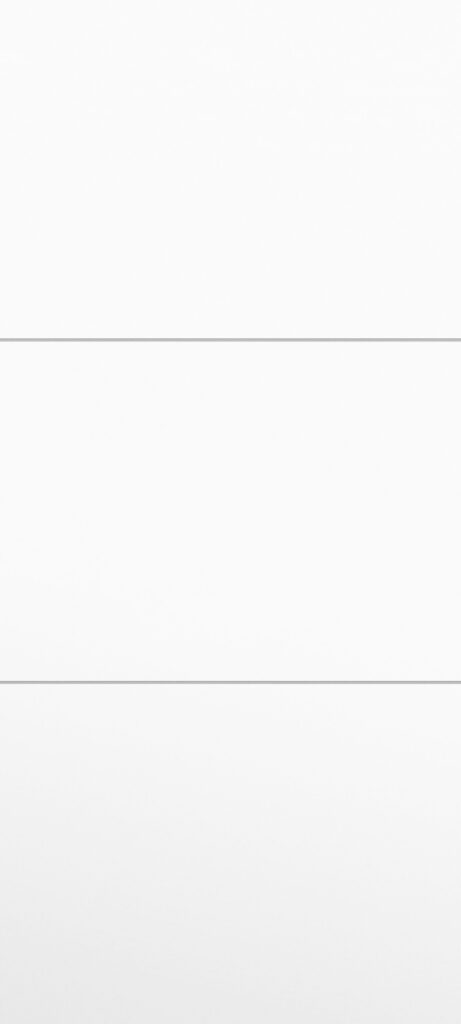

Six standard profiles offered in 6'8" with optional 7'0" and 8'0" heights.
Up to 4'0" wide, greater widths available special order.* -
Paired doors and 4-door bifolds are available as special order.*
-
Profile lines positioned to accommodate most hardware locations.
-
1-3/8" and 1-3/4" thickness, hollow and solid core available.
-

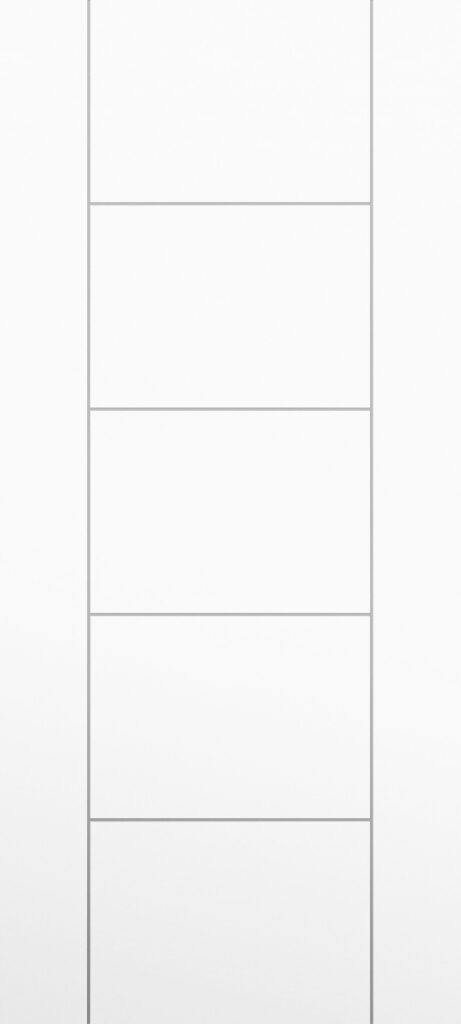

FineLine bifolds available in the following profiles: Robson, Denman, Parkrose, Montlake.
-
20-minute fire rated (all sizes, Category A or B) and 45-, 60-, 90-minute fire rated (all sizes, Category A.)
*Contact your Lynden Door representative for more information.
Construction
Architectural (LD) Series: Doors designed for commercial and institutional applications meeting specific standards Architectural (LD) Series of construction. LD Series doors meet or exceed standards as listed by WDMA I.S. 1-A Performance Standards, AWI, AWMAC Section 1300 and WI Section 12. Modern architecture often calls for doors capable of meeting high standards and offering complex design solutions for both the aesthetic and functional aspects of the project. Multiple configurations within a given project are common and purpose-built modifications may be included. Bonded sanded cores. Lifetime limited warranty on interior doors.
Commercial (CD ) Series: Doors designed for nonresidential applications meeting specific standards of construction. CD Series doors meet WDMA extra heavy duty standards and may be used in applications requiring higher standards than residential; experiencing high traffic; requiring large sizes; heightened security; sound attenuation; and a variety of hardware needs. Bonded sanded cores with softwood edge stile. 5-year limited warranty.
Interior Commercial (IC) Series: Doors designed for applications where an architectural door (LD Series) would typically be specified, but where the application is less rigorous than the architectural standard. Doors are built with a bonded sanded core with the application of a residential or light commercial door face. 5-year limited warranty on interior doors.
Standard Construction Series: Interior passage & bifold doors designed for residential and light commercial applications. Standard Construction doors offered in:
H8 (hollow core 1-3/8")
H4 (hollow core 1-3/4")
P8 (particleboard core 1-3/8")
P4 (particleboard core 1-3/4")
P20 (particleboard core 1-3/4" 20-minute fire rated)
Construction formats present a wide range of features and sizes with competitive pricing in a hollow core or drop-in (loose lay) solid core configuration. 1-year limited warranty.
ADDITIONAL RESOURCES:
AVAILABLE CORE TYPES
Function
Upgrades and services that add value and functionality
Lynden Door is fully equipped to carry out the most demanding and complex machining instructions, with automated precision and no major lead time delays.
An important part of our door prep is for vision lite cutouts, primarily for Architectural and Commercial doors.
One of Lynden Doors’ competencies is the application of moldings to door faces for decorative purposes.
PERFORMANCE
Upgrades and services that add value and functionality
Lynden Door offers a full suite of neutral and positive pressure fire doors for 20, 45, 60 and 90 minute rated applications.
Lynden Door offers a full suite of sound rated doors to meet the demands of ever changing built environment in high-sound areas.
Recommended for a wide range of medical and Institutional applications where lead shielding is required.
